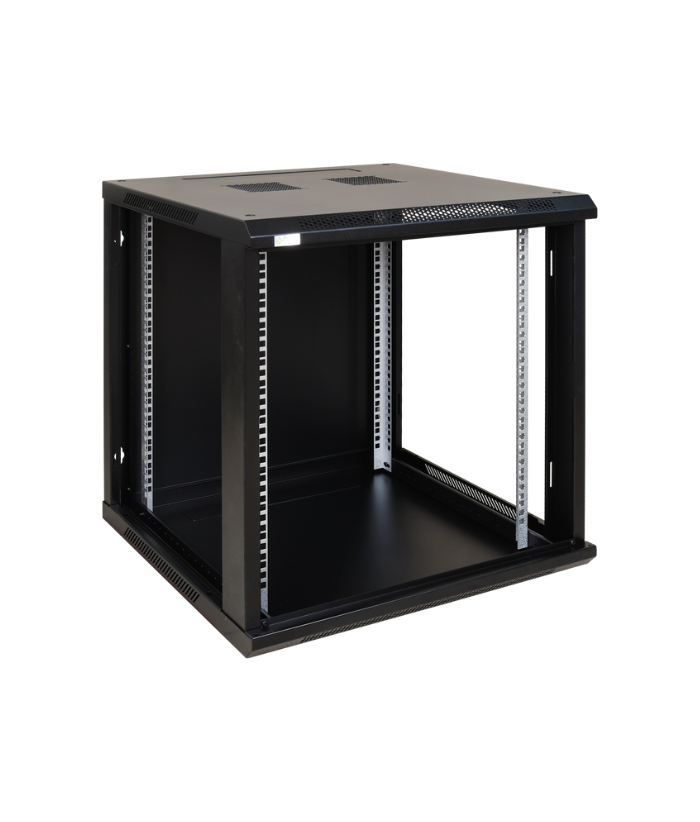

The HezzraLink 12U 600×450×635 mm Wall-Mount Single-Section Network Cabinet is designed for organized installation of network and telecommunications equipment such as switches, patch panels, routers, DVR/NVR systems, and structured cabling. Its 12U capacity provides more rack space while maintaining a compact wall-mounted design.
this series uses a 19-inch standard rack format, SPCC cold-rolled steel construction, a lockable toughened-glass front door, removable side panels, top and bottom cable access, and passive ventilation openings.

⚙️ Details:

• Rack Capacity: 12U

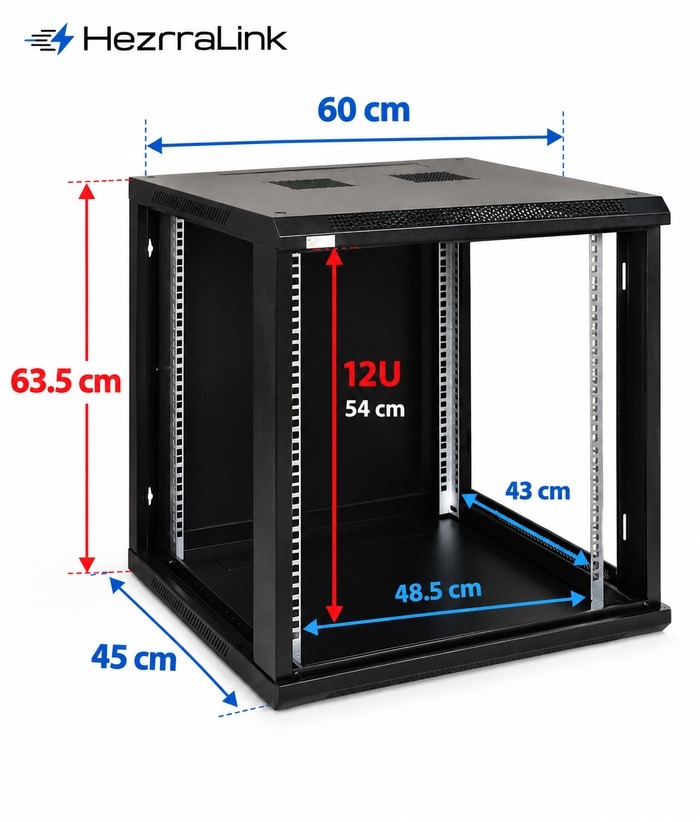

• Dimensions: 600 × 450 × 635 mm
• Rack Standard: 19"
• Main Material: SPCC Cold-Rolled Steel
• Mounting Profile Thickness: 1.5 mm
• Mounting Angle Thickness: 1.2 mm

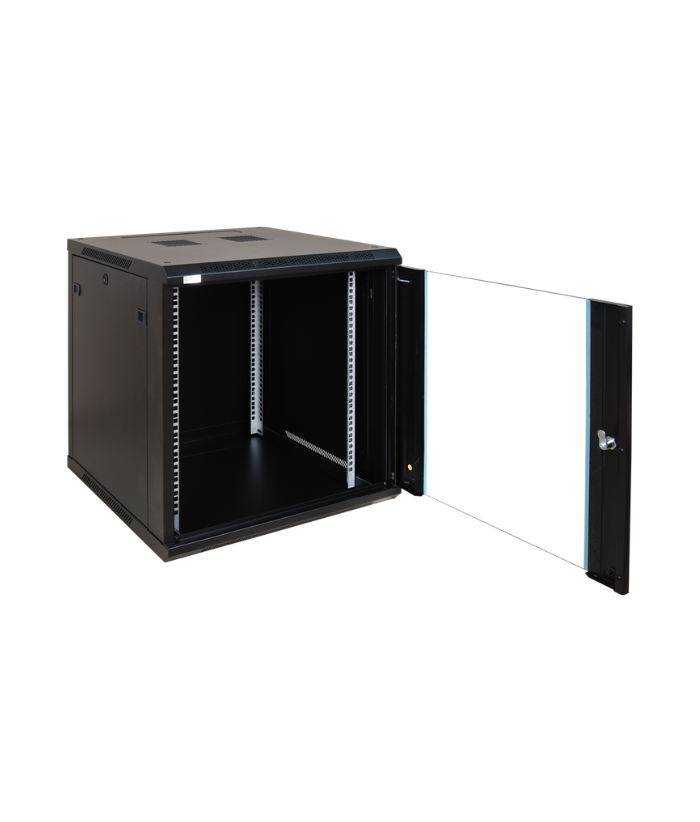

• Front Door: Toughened Glass with Lock
• Side Panels: Removable
• Protection Rating: IP20
• Static Load Capacity: Up to 60 kg
• Cable Entry: Top and Bottom
• Ventilation: Passive airflow through ventilation openings
• Cooling Provision: Top fan mounting positions
• Surface Finish: Powder Coated
• Color Options: Black RAL9004 / Grey RAL7035
• Applications: Switches, patch panels, routers, DVR/NVR, telecom equipment and structured cabling
