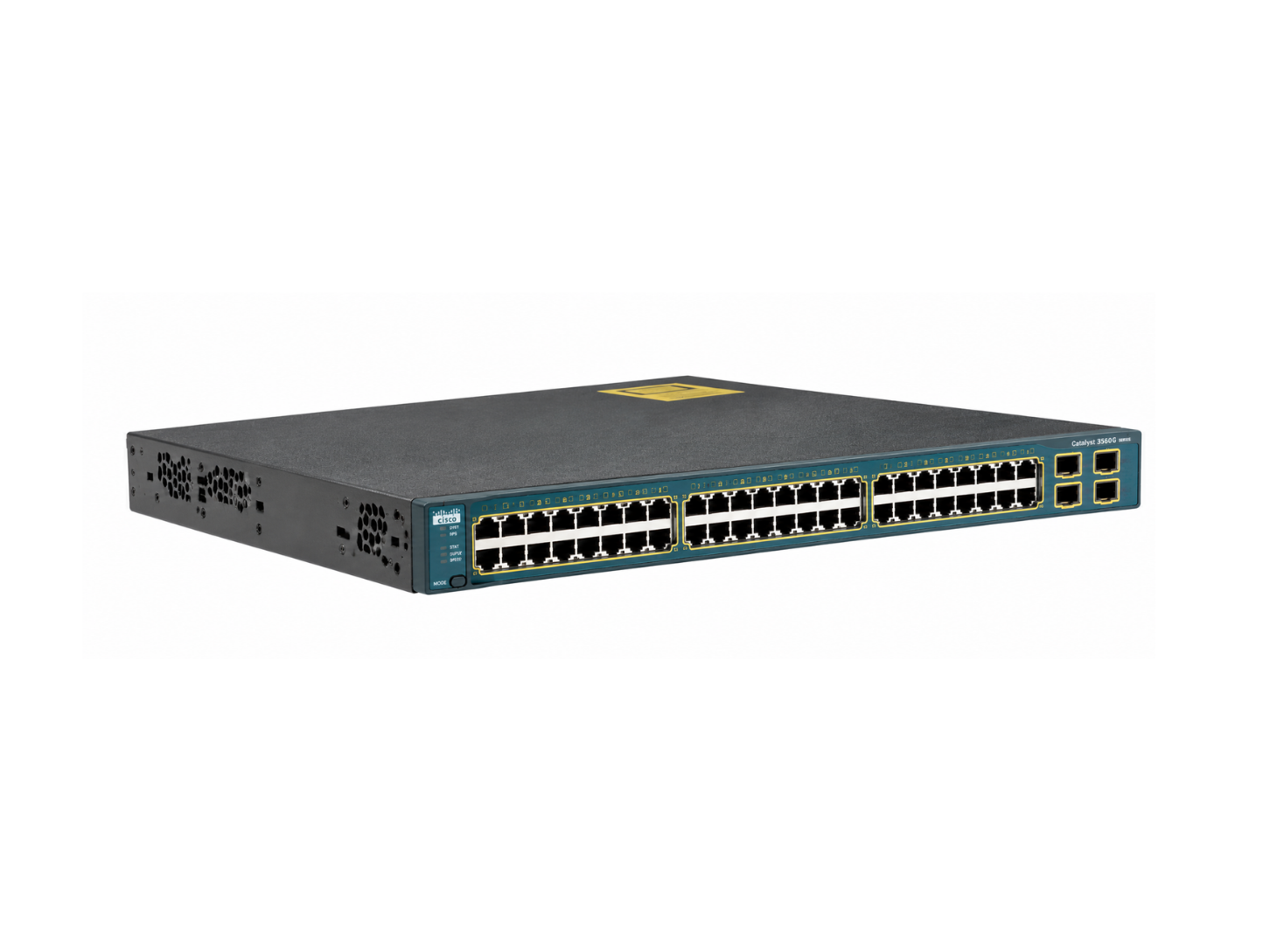

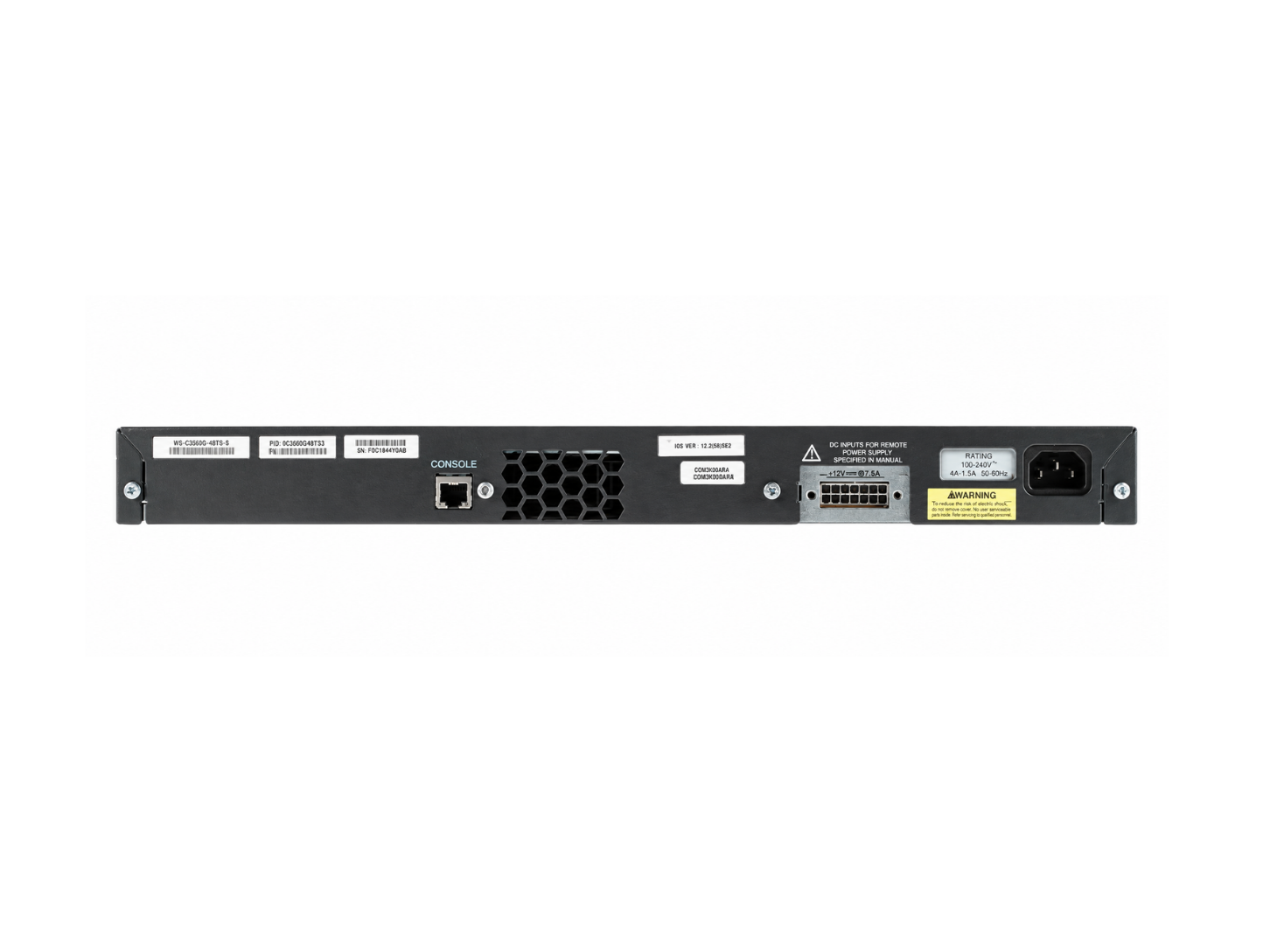

The Cisco Catalyst WS-C3560G-48TS-S is a 1U enterprise-class managed multilayer switch designed for business networks, branch offices, and network access-layer deployments. It provides 48 Gigabit Ethernet ports together with 4 Gigabit SFP uplink slots, offering flexible copper and fiber connectivity, Powered by the Cisco IOS IP Base feature set, the switch supports Layer 2 and Layer 3 networking capabilities and delivers a 32 Gbps switching capacity with forwarding performance of up to 38.7 Mpps. This model is a non-PoE switch.

Key Features

• 48 × 10/100/1000 Mbps Gigabit Ethernet ports
• 4 × Gigabit SFP slots
• Layer 2 / Layer 3 managed switch
• Cisco IOS IP Base
• 32 Gbps switching capacity
• Up to 38.7 Mpps forwarding rate
• Supports up to 12,000 MAC addresses
• Supports up to 11,000 routes
• 128 MB DRAM
• 32 MB Flash memory
• 1U rack-mount design
• Non-PoE
• Standalone switch — no stacking
• 100–240V AC, 50/60Hz power input cablesandkits.com

Technical Specifications

SpecificationDetailsBrand | Cisco
Model | WS-C3560G-48TS-S
Series | Catalyst 3560G
Product Type | Managed Multilayer Switch
Condition | Used
Ethernet Ports | 48 × 10/100/1000 Mbps
SFP Ports | 4 × Gigabit SFP
PoE | No
Software Feature Set | IP Base
Switching Capacity | 32 Gbps
Forwarding Rate | 38.7 Mpps
MAC Address Table | 12,000
Supported Routes | 11,000
DRAM | 128 MB
Flash Memory | 32 MB
Rack Size | 1U
Power Input | 100–240V AC, 50/60Hz
Dimensions (H × W × D) | 4.4 × 44.5 × 30.1 cm
Weight | Approx. 3.9 kg
