The Ubiquiti airFiber 60 XG (AF60-XG) is a high-capacity 60 GHz Point-to-Point wireless radio designed for fast and reliable network backhaul. It delivers up to 3.8 Gbps throughput, or up to 6 Gbps with channel bonding, with a maximum range of 4 km. The AF60-XG also includes 5 GHz Back-Up RF, a 1/10G SFP+ port, GPS, and a precision alignment kit for professional outdoor installations.

Key Features

• 60 GHz Point-to-Point wireless technology
• Up to 3.8 Gbps throughput
• Up to 6 Gbps with channel bonding
• Up to 4 km wireless range
• 5 GHz Back-Up RF for additional link reliability
• 1× 1/10G SFP+ and 1× Gigabit RJ45 ports
• Integrated GPS
• Operating temperature from -40°C to 55°C

Technical Specifications

Brand                                              | Ubiquiti
Product Model                               | airFiber 60 XG (AF60-XG)
Wireless Technology                    | 60 GHz Point-to-Point
Maximum Throughput                  | 3.8 Gbps
With Channel Bonding                  | Up to 6 Gbps
Maximum Range                           | 4 km
60 GHz Frequency                       | 57–66 GHz*
5 GHz Back-Up RF                        | 5150–5875 MHz*
Channel Bandwidth                      | 2160 / 4320 MHz

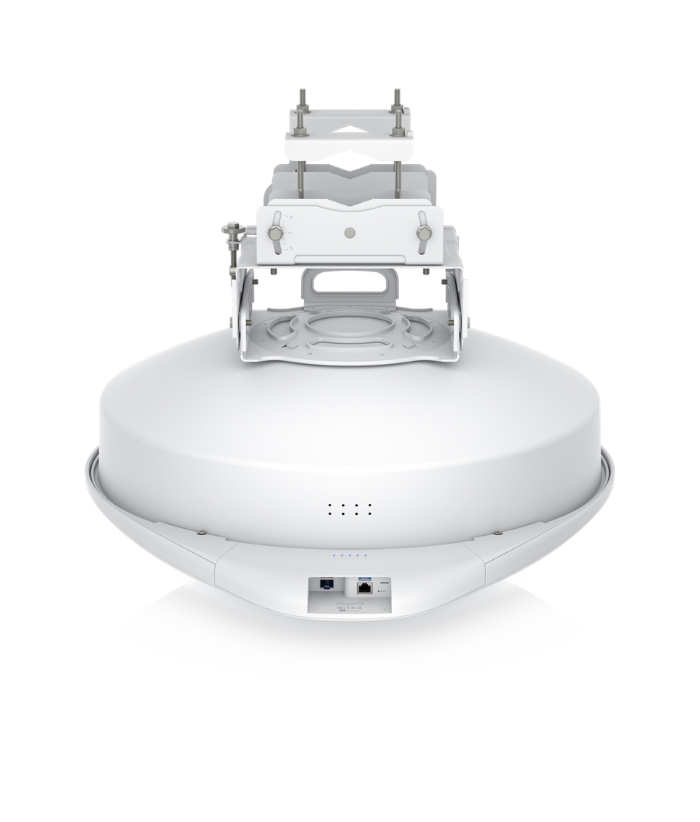

Network Ports                              | 1× GbE RJ45, 1× 1/10G SFP+
GPS                                                | Yes
Power Consumption                     | 31.2 W Max.
Power Supply                                | 48V DC, 0.65A Gigabit PoE Adapter
Operating Temperature                | -40°C to 55°C

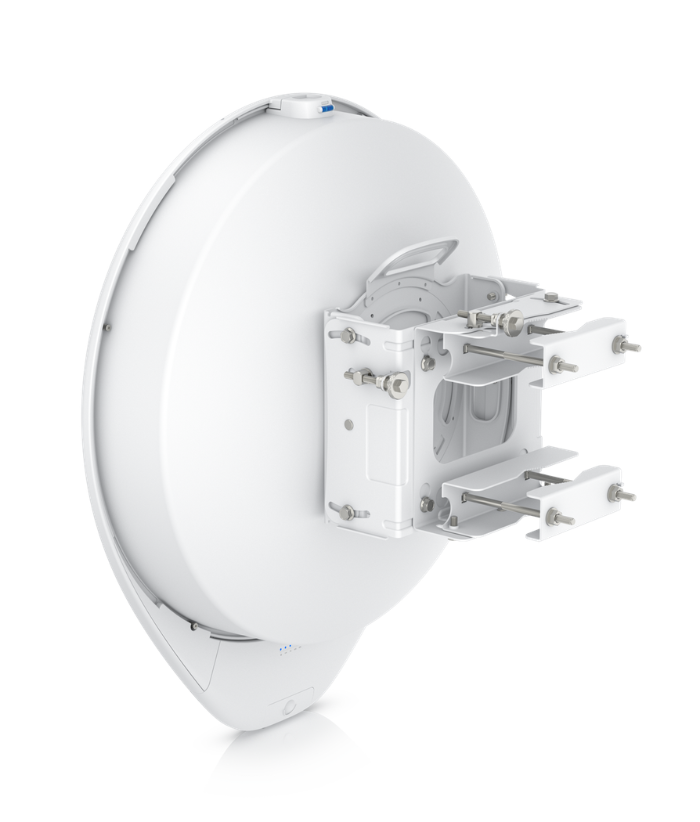

Mounting                                       | Precision alignment kit included

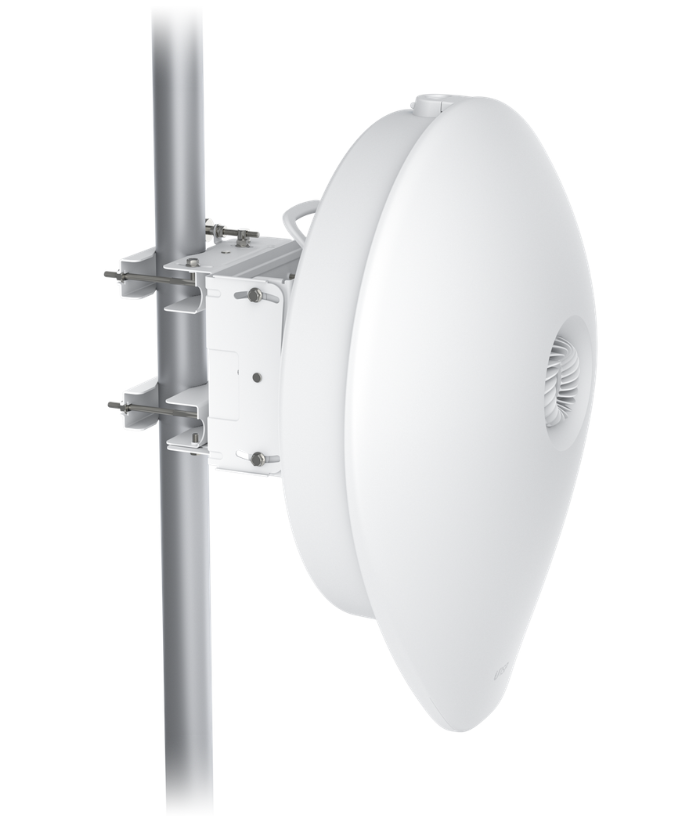

Pole Compatibility                        | Ø40–80 mm
Management                                 | UISP
NDAA Compliant                           | Yes

Ideal For

• ISP & WISP network backhaul
• Building-to-building wireless links
• Enterprise network connectivity
• High-capacity CCTV and surveillance links
• Connecting remote offices or sites
• Wireless backbone networks
• Deployments where fiber installation is difficult or expensive
