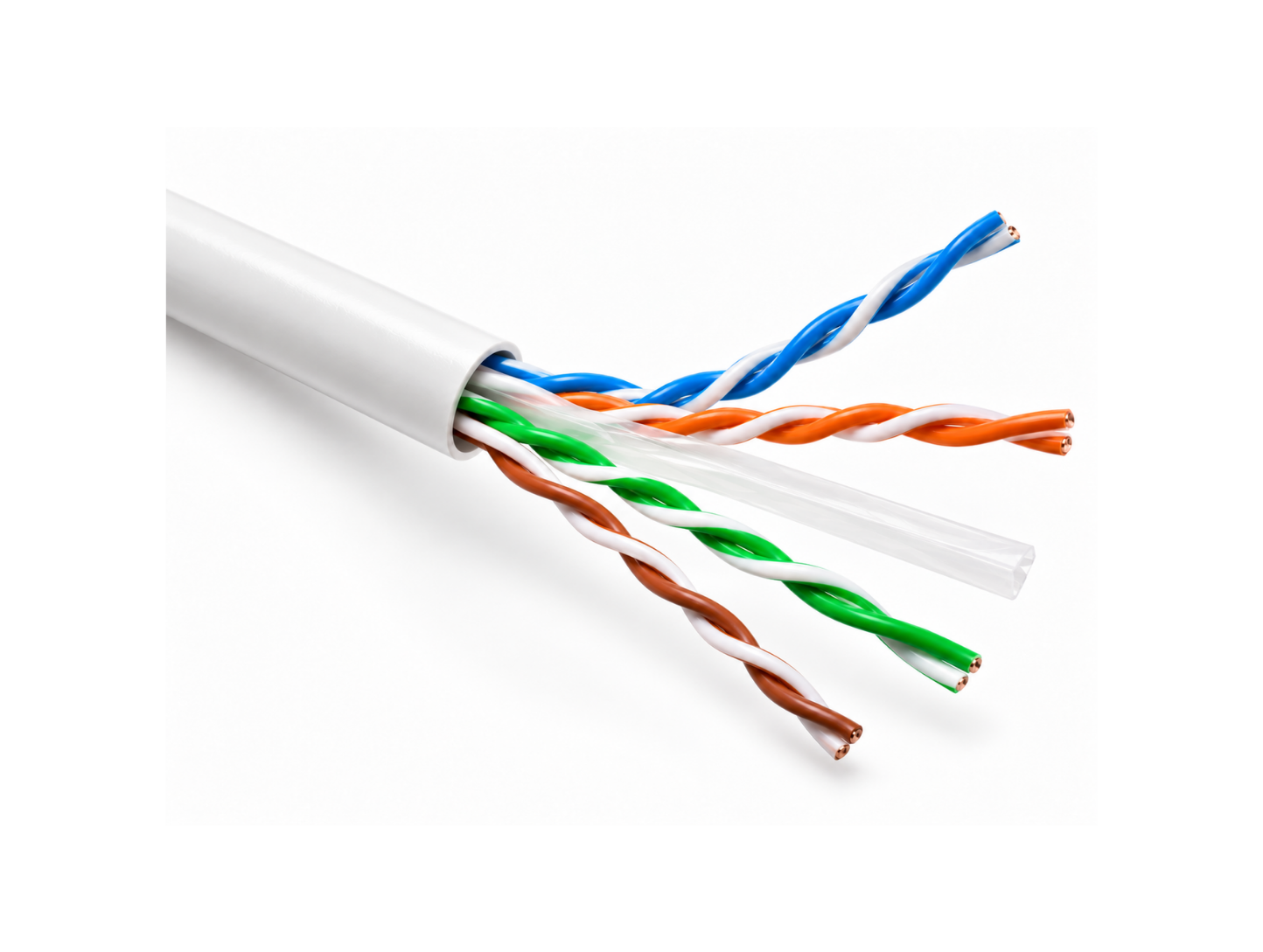

The HezrraLink HZL-T6016-25 is a 305-meter CAT6 U/UTP 4-pair indoor network cable designed for standard LAN and structured cabling installations. It uses 23AWG CCA (Copper-Clad Aluminum) conductors, HDPE insulation, an internal separator, and a durable white PVC outer jacket, The cable is suitable for indoor networking applications where clean installation, reliable Gigabit connectivity, and cost-effective cabling are required.

Key Features

- CAT6 U/UTP 4-pair indoor cable
- 23AWG CCA conductor
- 0.57 mm conductor diameter
- HDPE insulation
- Internal separator
- No shielding
- No drain wire
- Rip cord included
- White PVC outer jacket
- 305-meter wooden drum
- Suitable for LAN, routers, switches, patch panels, PCs, and structured cabling
- Complies with ISO/IEC 11801, TIA-568-C.2, and YD/T1019

Technical Specifications

Model: HZL-T6016-25
Category: CAT6
Cable Type: U/UTP, 4 Pair
Application: Indoor Networking
Conductor: CCA (Copper-Clad Aluminum)
Conductor Size: 23AWG
Conductor Diameter: 0.57 ± 0.01 mm
Insulation: HDPE
Insulation Diameter: 1.1 ± 0.03 mm
Insulation Colors: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Separator: Yes
Shielding: No
Drain Wire: No
Braiding: No
Rip Cord: Yes
Outer Jacket: PVC
Jacket Color: White
Cable Length: 305 m
Packaging: Wooden Tray & Carton
Impedance: 100 ± 15 Ω
DC Conductor Resistance: ≤ 9.5 Ω/100m
DC Resistance Unbalance: ≤ 5.0%
Delay Skew: ≤ 45 ns/100m
Capacitance: ≤ 5.6 nF/100m
NVP: 69%
Standard: ISO/IEC 11801, TIA-568-C.2, YD/T1019
