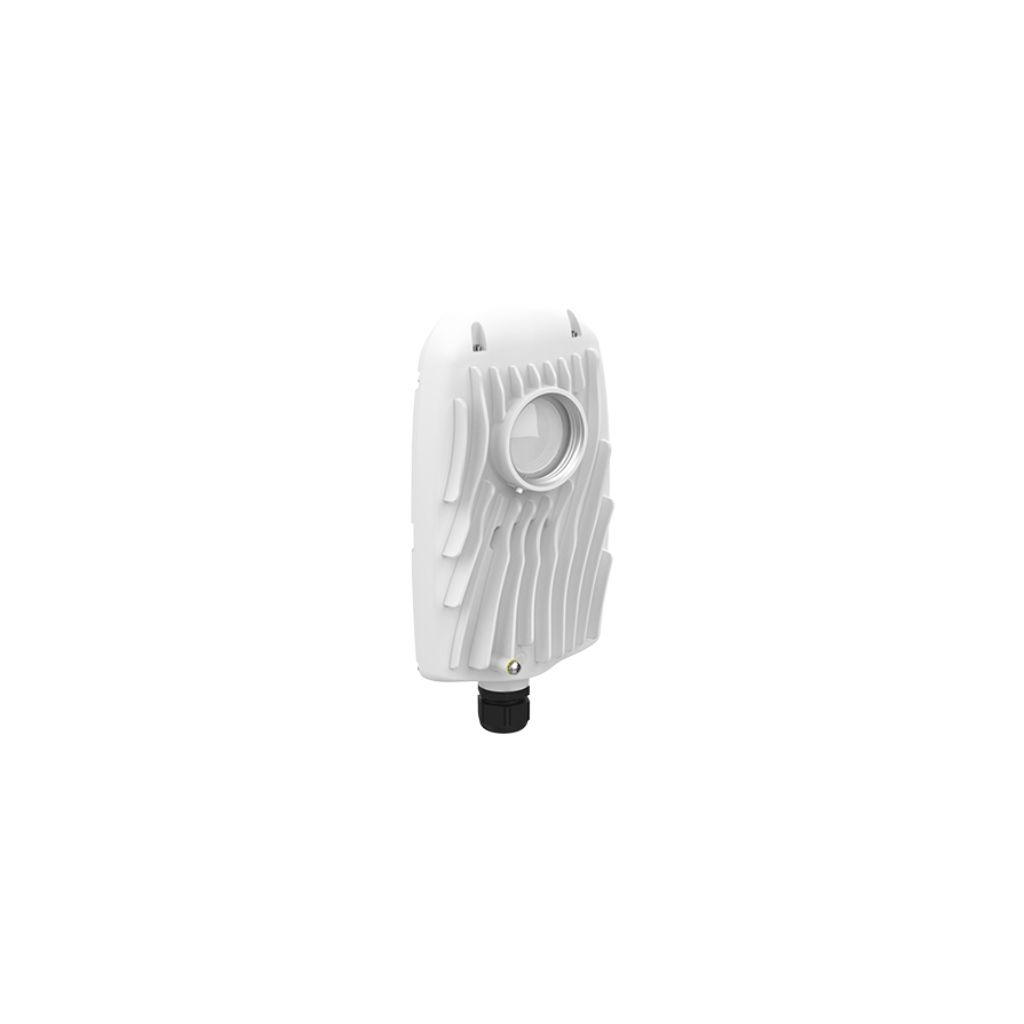

❒ Mimosa B5x – High-Speed Modular PTP Backhaul Radio

✔ High Throughput – Delivers up to 1.5 Gbps IP throughput with 160 MHz channel capacity
✔ Flexible Frequency Range – Operates between 4.9–6.4 GHz for versatile deployment
✔ Modular Antenna Options – Compatible with N5-X twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish)
✔ GPS Synchronization – Enables efficient spectrum reuse across networks
✔ Robust Build – Die-cast aluminum enclosure with IP67 rating for harsh environments
✔ Low Latency – Achieves latency under 1 ms in auto mode
✔ Advanced MIMO Technology – 4x4:4 MIMO OFDM up to 256 QAM for reliable connections
✔ Smart Spectrum Management – Active scan monitors and logs RF interference without service impact
✔ Comprehensive Management – Supports Mimosa management, SNMPv2, Syslog, and HTTPS Web UI
✔ Compact Design – Dimensions: 241 x 139 x 76 mm; Weight: 1.4 kg (without mount)
