HZL-T5804-25-12C – 12-Core Outdoor Single-Mode Fiber Optic Cable (GYXTW, G.652D, 1KM/Drum)

Description

The HZL 12 Core Round Fiber Optic Cable (كيبل ضوئي قطري) is an outdoor single mode fiber optic cable designed for telecommunications, ISP networks, and fiber infrastructure installations.

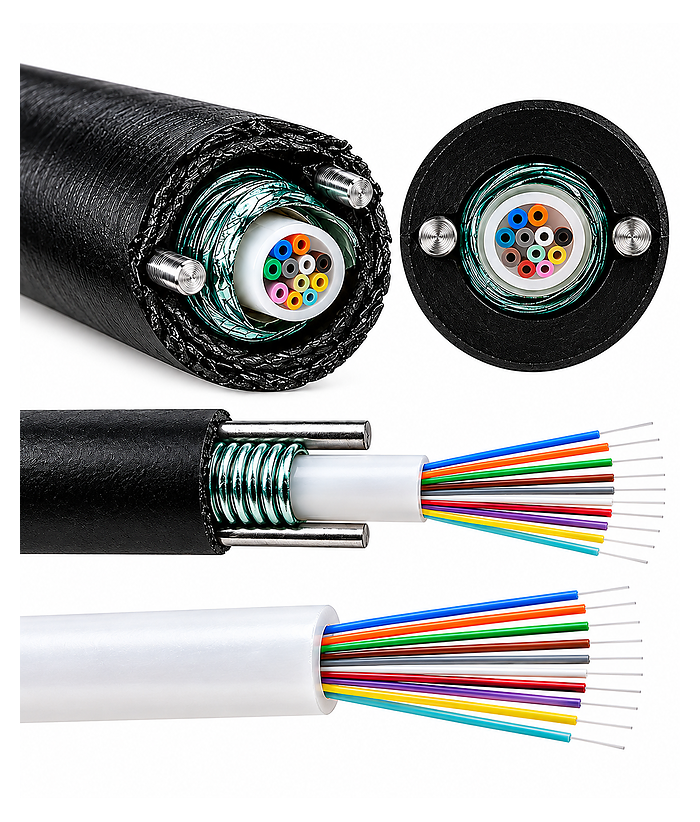

It uses G.652D single mode fiber with a GYXTW cable construction, providing low optical attenuation together with durable mechanical protection. The cable construction includes a PBT loose tube, phosphating steel wire reinforcement, plastic-coated steel strip armor, and a black MDPE outer jacket, making it suitable for professional outdoor fiber network installations.
The manufacturer specifies maximum attenuation of ≤ 0.35 dB/km at 1310nm and ≤ 0.21 dB/km at 1550nm for the G.652D fiber.

Key Features

• Cable Style: Round Cable — كيبل ضوئي قطري
• Fiber Count: 12 Core
• Fiber Type: Single Mode
• Fiber Standard: G.652D
• Cable Type: GYXTW
• Structure: Unitube
• Fibers per Tube: 12
• Loose Tube Diameter: 2.0 ± 0.1 mm
• Cable Diameter: 7.4 ± 0.3 mm
• Cable Weight: Approx. 54 kg/km
• Black MDPE Outer Jacket
• PBT Loose Tube
• Phosphating Steel Wire Reinforcement
• Plastic-Coated Steel Strip Armor
• Low Optical Attenuation
• Suitable for Outdoor Fiber Network Installations
• Operating Temperature: -20°C to +60°C




• Technical Specification

• SpecificationDetailsBrand | HZL / HezrraLink
  Product Category | Round Fiber Optic Cable – كيبل ضوئي قطري
  Cable Type | GYXTW
  Structure | Unitube
  Fiber Count | 12 Core
  Fibers per Tube | 12
  Fiber Type | Single Mode
  Fiber Standard | G.652D
  Mode Field Diameter @ 1310nm | 9.2 ± 0.4 μm
  Cladding Diameter | 125.0 ± 1 μm
  Coating Diameter | 245 ± 10 μm
  Maximum Attenuation @ 1310nm | ≤ 0.35 dB/km
  Maximum Attenuation @ 1550nm | ≤ 0.21 dB/km
  Cable Cut-Off Wavelength | ≤ 1260 nm
  Proof Stress Level | ≥ 100 kpsi
  Loose Tube Material | PBT
  Loose Tube Diameter | 2.0 ± 0.1 mm
  Reinforcement Material | Phosphating Steel Wire
  Armor Material | Plastic-Coated Steel Strip
  Outer Jacket Material | MDPE
  Outer Jacket Color | Black
  Nominal Outer Jacket Thickness | 2 mm
  Cable Diameter | 7.4 ± 0.3 mm
  Cable Weight | Approx. 54 kg/km
  Minimum Bending Radius – Static | 10 × Cable Diameter
  Minimum Bending Radius – Dynamic | 20 × Cable Diameter
  Short-Term Tensile Strength | 1500 N
  Short-Term Crush Resistance | 1000 N / 100 mm
  Operating Temperature | -20°C to +60°C
