📦 Description:

The HZL 6 Core Round Fiber Optic Cable (كيبل ضوئي قطري) is an outdoor single mode fiber optic cable designed for telecommunications, ISP networks, and fiber infrastructure installations.

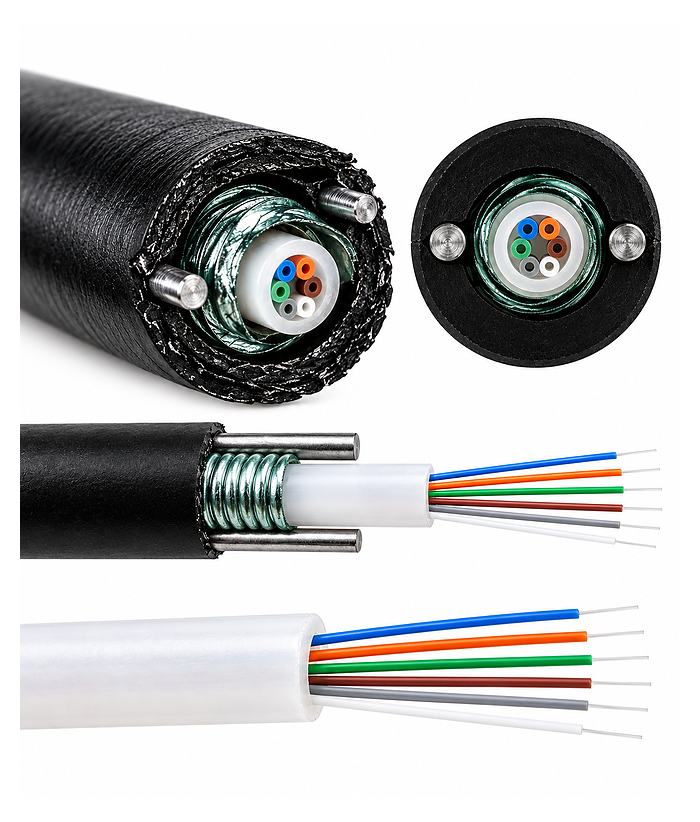

It uses G.652D single mode fiber with a GYXTW cable construction, providing low optical attenuation together with durable mechanical protection. The cable includes a PBT loose tube, steel wire reinforcement, plastic-coated steel strip armor, and a black outer jacket, making it suitable for outdoor network use.
This specific reel contains 6 fiber cores in the following colors: Blue, Orange, Green, Brown, Grey, and White, and is supplied in 1KM length.

Key Features

• Cable Style: Round Cable — كيبل ضوئي قطري
• Fiber Count: 6 Core
• Fiber Colors: Blue, Orange, Green, Brown, Grey, White
• Fiber Type: Single Mode
• Fiber Standard: G.652D
• Cable Type: GYXTW-6B1
• P.N. / Model: HZL-T5801-25
• Length: 1KM / Drum
• Cable Outer Diameter: 7.4 mm
• Suitable for Outdoor Duct Installations
• Low Optical Attenuation
• Steel Wire Reinforcement
• Plastic-Coated Steel Strip Armor
• Black Outer Jacket
• Net Weight: 51 KG
• Gross Weight: 56 KG

• Technical Specification

• SpecificationDetailsBrand | HZL / HezrraLink
  Product Category | Round Fiber Optic Cable – كيبل ضوئي قطري
  Cable Type | GYXTW-6B1
  Fiber Type | Single Mode
  Fiber Standard | G.652D
  Fiber Count | 6 Core
  Fiber Colors | Blue, Orange, Green, Brown, Grey, White
  P.N. / Model | HZL-T5801-25
  Length | 1000 meters / 1KM
  Outer Diameter (OD) | 7.4 mm
  Application | Outdoor Duct Cable
  Net Weight | 51 KG
  Gross Weight | 56 KG
  Reel Number | 00077
  Date | 2025/11/12

• Factory Attenuation Test

• (This section is very useful for SadaBox because it gives customer confidence that the data comes from the actual reel.)
  Fiber Color1310nm1550nmBlue | 0.334 | 0.185
  Orange | 0.328 | 0.193
  Green | 0.327 | 0.181
  Brown | 0.328 | 0.192
  Grey | 0.338 | 0.185
  White | 0.343 | 0.180
