HZL 8 Core Round Fiber Optic Cable – GYXTW

كيبل ضوئي قطري HZL – 8 كور

Description

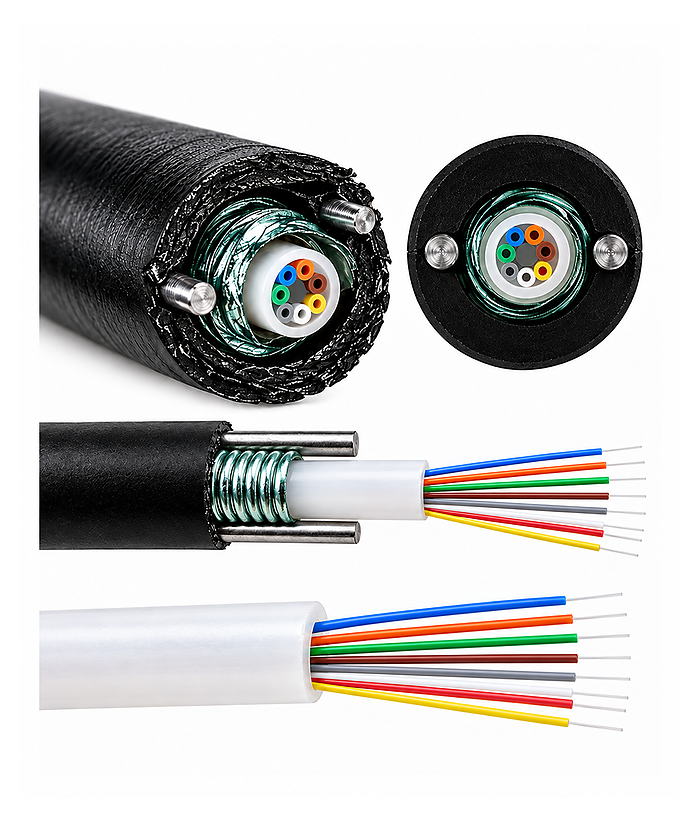

The HZL 8 Core Round Fiber Optic Cable (كيبل ضوئي قطري) is an outdoor single mode fiber optic cable designed for telecommunications, ISP networks, and fiber infrastructure installations. It uses G.652D single mode fiber with a GYXTW cable construction, providing low optical attenuation together with durable mechanical protection. The cable construction includes a PBT loose tube, phosphating steel wire reinforcement, plastic-coated steel strip armor, and a black MDPE outer jacket, making it suitable for professional outdoor fiber network installations. The manufacturer specifies G.652D fiber with maximum attenuation of ≤ 0.35 dB/km at 1310nm and ≤ 0.21 dB/km at 1550nm.  01KATY06MWXBH77AZ9FC770EXM

Key Features

• Cable Style: Round Cable — كيبل ضوئي قطري
• Fiber Count: 8 Core
• Fiber Type: Single Mode
• Fiber Standard: G.652D
• Cable Type: GYXTW
• Structure: Unitube
• Fibers per Tube: 8
• Loose Tube Diameter: 2.0 ± 0.1 mm
• Cable Diameter: 7.4 ± 0.3 mm
• Cable Weight: Approx. 53 kg/km
• Black MDPE Outer Jacket
• PBT Loose Tube
• Phosphating Steel Wire Reinforcement
• Plastic-Coated Steel Strip Armor
• Low Optical Attenuation
• Suitable for Outdoor Fiber Network Installations
• Operating Temperature: -20°C to +60°C

Technical Specification

Specification Details Brand | HZL / HezrraLink
Product Category | Round Fiber Optic Cable – كيبل ضوئي قطري
Cable Type | GYXTW
Structure | Unitube
Fiber Count | 8 Core
Fibers per Tube | 8
Fiber Type | Single Mode
Fiber Standard | G.652D
Mode Field Diameter @ 1310nm | 9.2 ± 0.4 μm
Cladding Diameter | 125.0 ± 1 μm
Coating Diameter | 245 ± 10 μm
Maximum Attenuation @ 1310nm | ≤ 0.35 dB/km
Maximum Attenuation @ 1550nm | ≤ 0.21 dB/km
Cable Cut-Off Wavelength | ≤ 1260 nm
Proof Stress Level | ≥ 100 kpsi
Loose Tube Material | PBT
Loose Tube Diameter | 2.0 ± 0.1 mm
Reinforcement Material | Phosphating Steel Wire
Armor Material | Plastic-Coated Steel Strip
Outer Jacket Material | MDPE
Outer Jacket Color | Black
Nominal Outer Jacket Thickness | 2 mm
Cable Diameter | 7.4 ± 0.3 mm
Cable Weight | Approx. 53 kg/km
Minimum Bending Radius – Static | 10 × Cable Diameter
Minimum Bending Radius – Dynamic | 20 × Cable Diameter
Short-Term Tensile Strength | 1500 N
Short-Term Crush Resistance | 1000 N / 100 mm
Operating Temperature | -20°C to +60°C
