Description

The HezrraLink FTTH Drop Cable 1 Core GJYXFCH-1B6a2 is a single mode outdoor fiber optic drop cable designed for FTTH subscriber connections, ISP networks, last-mile installations, and outdoor fiber distribution.
This cable contains 1 fiber core and uses a flat outdoor drop-cable construction designed to provide mechanical protection while remaining practical for FTTH installation.
The GJYXFCH construction includes the optical fiber core, strengthening components, steel reinforcement, and a protective black outer jacket.

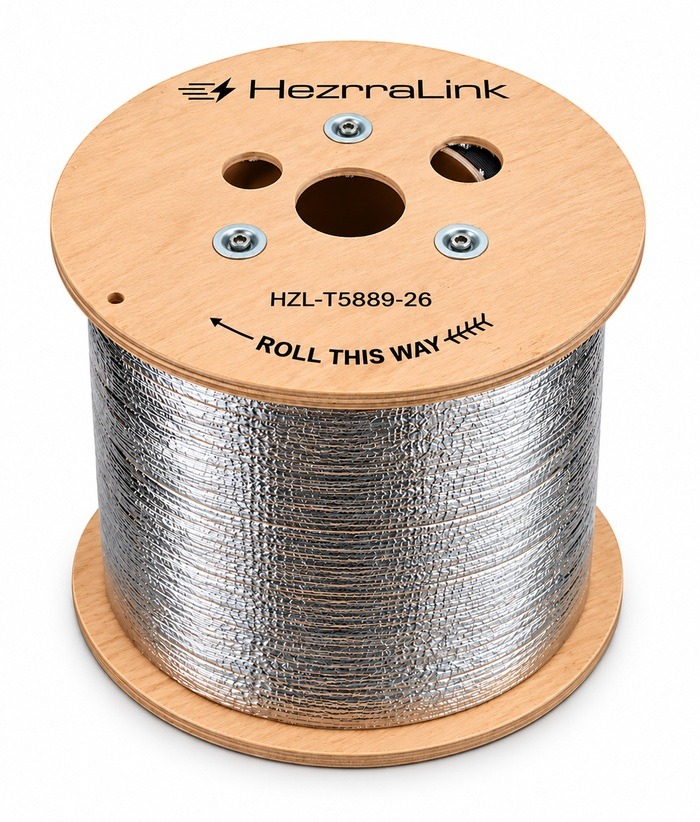

The product is supplied in a 1000-meter / 1KM length and is identified by model / part number: HZL-T5889-26
The G.657A2 fiber specification provides excellent bending performance for FTTH installations while maintaining low optical attenuation.

According to the HezrraLink specification, G.657A2 fiber provides maximum attenuation of:
≤ 0.36 dB/km at 1310nm
≤ 0.22 dB/km at 1550nm

Key Features

• Cable Style: FTTH Drop Cable — كيبل ضوئي شريطي
• Fiber Count: 1 Core
• Fiber Type: Single Mode
• Fiber Standard: G.657A2
• Cable Type: GJYXFCH
• Model / P.N.: HZL-T5889-26
• Length: 1000M / 1KM
• Application: Outdoor FTTH
• Flat Drop Cable Construction
• Steel Wire Reinforcement
• FRP / Strengthening Components
• Black Protective Outer Jacket
• Low Optical Attenuation
• Suitable for Subscriber Drop Connections
• Suitable for ISP and FTTH Networks
• Flexible Fiber Design for FTTH Installation
• Operating Temperature: -20°C to +60°C

Technical Specification

SpecificationDetails
Brand | HZL / HezrraLink
Product Category | FTTH Drop Cable – كيبل ضوئي شريطي
Model / P.N. | HZL-T5889-26
Cable Type | GJYXFCH
Fiber Count | 1 Core
Fiber Type | Single Mode
Fiber Standard | G.657A2
Application | Outdoor FTTH
Length | 1000 meters / 1KM
Mode Field Diameter @ 1310nm | 8.6–9.5 ± 0.4 μm
Cladding Diameter | 125.0 ± 0.7 μm
Cladding Non-Circularity | ≤1.0%
Coating Diameter | 245 ± 5 μm
Coating / Cladding Concentricity Error | ≤12 μm
Cable Cut-Off Wavelength | ≤1260 nm
Maximum Attenuation @ 1310nm | ≤0.36 dB/km
Maximum Attenuation @ 1550nm | ≤0.22 dB/km
Proof Stress Level | ≥100 kpsi
Strengthening Component | FRP / Strengthening Component
Reinforcing Element | Galvanized Steel Wire
Outer Jacket Color | Black
Minimum Bending Radius – Static | 20 × Cable Diameter
Minimum Bending Radius – Dynamic | 40 × Cable Diameter
Short-Term Tensile Strength | 600 N
Short-Term Crush Resistance | 2200 N / 100 mm
Operating Temperature | -20°C to +60°C
Drum / Package Type | Plywood Pallet
