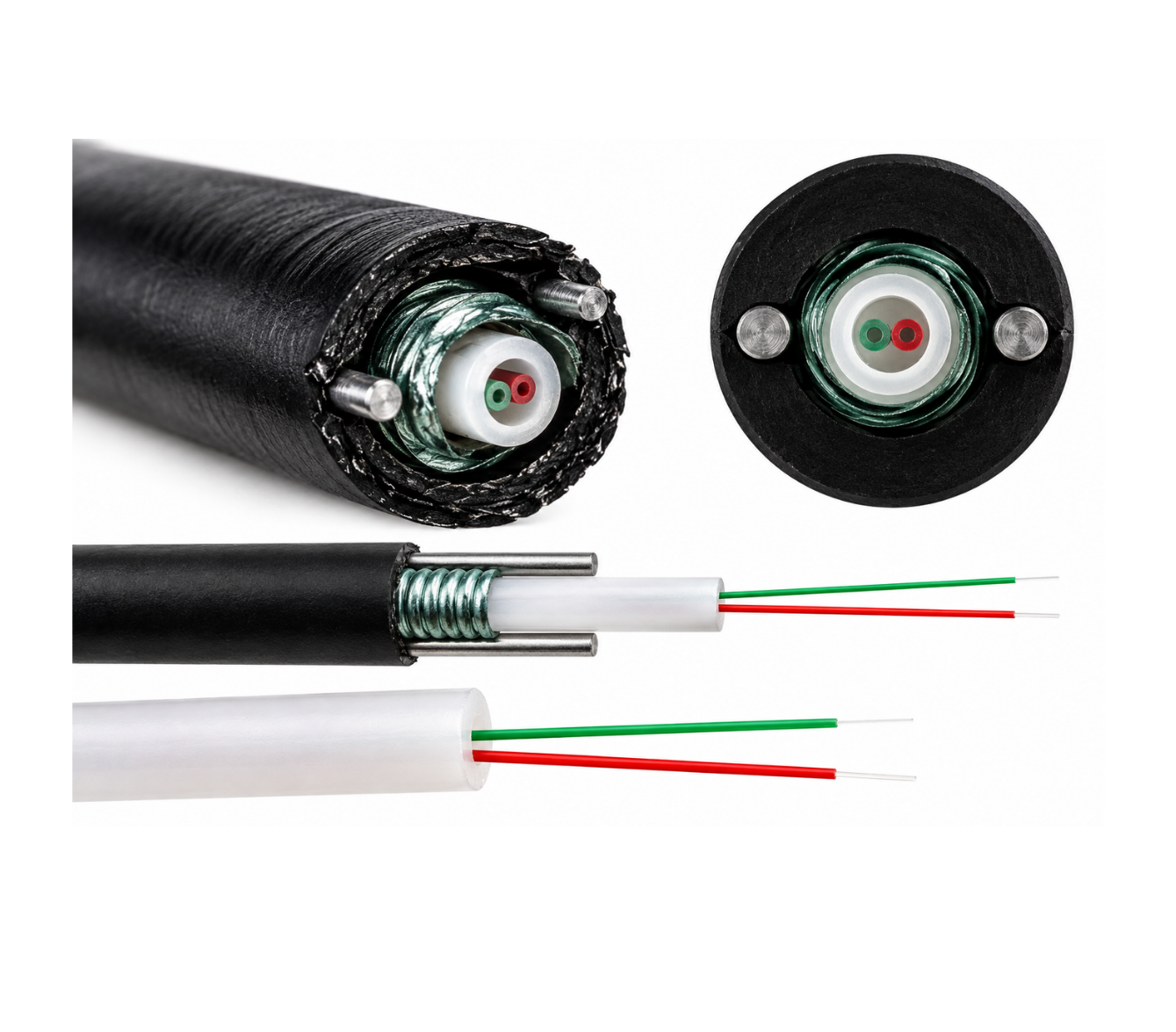

The HZL 2 Core Round Fiber Optic Cable (كيبل ضوئي قطري) is an outdoor single mode fiber optic cable designed for reliable telecommunications and fiber network installations.

It uses G.652D single mode fiber with a GYXTW cable structure, providing low optical attenuation and durable mechanical protection. The cable includes a PBT loose tube, steel wire reinforcement, plastic-coated steel strip armor, and a black MDPE outer jacket.  01KXDBG1Q5EY5341K5TZ8SC2GG.

Key Features

• Cable Style: Round Cable — كيبل ضوئي قطري
• Fiber Count: 2 Core
• Fiber Type: Single Mode
• Fiber Standard: G.652D
• Cable Type: GYXTW
• Length: 1KM / Drum
• Cable Diameter: 7.4 ± 0.3 mm
• Black MDPE Outer Jacket
• Steel Wire Reinforcement
• Plastic-Coated Steel Strip Armor
• PBT Loose Tube
• Outdoor Fiber Optic Cable
• Low Optical Attenuation
• Operating Temperature: -20°C to +60°C




Technical Specification

| Brand  |                       HZL
| Product Category  |                  Round Fiber Optic Cable – كيبل ضوئي قطري
| Cable Type  |             GYXTW
| Fiber Count  |             2 Core
| Fiber Type  |             Single Mode
| Fiber Standard  |           G.652D
| Length  |                   1 KM / Drum
| Mode Field Diameter @ 1310nm  |          9.2 ± 0.4 μm
| Loose Tube Material  |            PBT
| Reinforcement Material  |          Phosphating Steel Wire
| Armor Material  |          Plastic-Coated Steel Strip
| Outer Jacket Material  |        MDPE
| Loose Tube Diameter  |         2.0 ± 0.1 mm
| Cable Diameter  |            7.4 ± 0.3 mm
| Cable Weight  |            Approx. 52 kg/km
| Minimum Bending Radius – Static  | 10 × Cable Diameter
| Minimum Bending Radius – Dynamic  | 20 × Cable Diameter
| Short-Term Tensile Strength  | 1500 N
| Short-Term Crush Resistance  | 1000 N / 100 mm
| Operating Temperature  | -20°C to +60°C
