Description

The HZL 24 Core Round Fiber Optic Cable (كيبل ضوئي قطري) is an outdoor armored single mode fiber optic cable designed for telecommunications, ISP networks, backbone connections, and fiber infrastructure installations.
This specific cable uses G.652D single mode fiber with a GYXTW-24B1 construction and is supplied on a 1000-meter / 1KM drum. The actual reel is identified as HZL-T5879-24C and has an outside diameter of 8.0 mm.

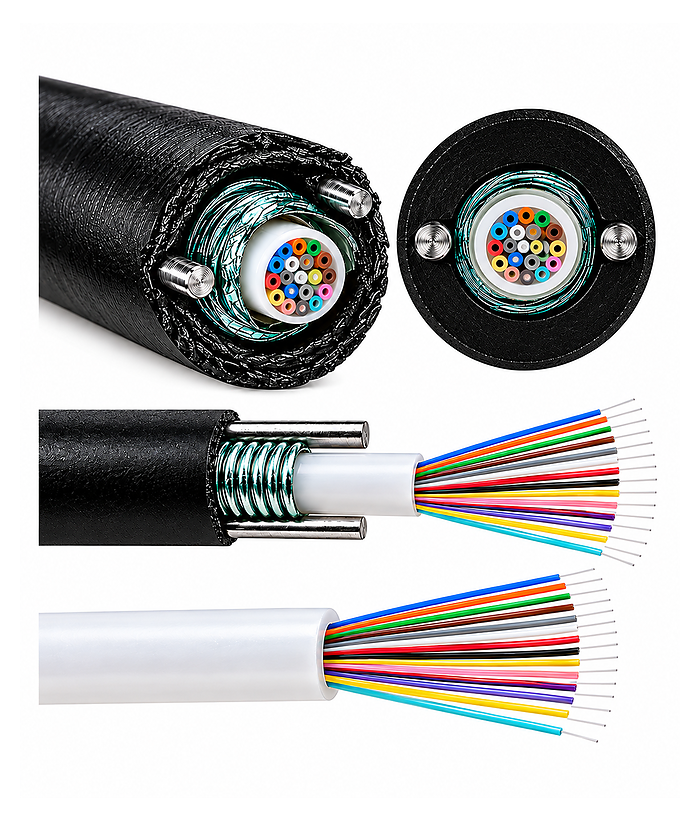

The HezrraLink GYXTW construction uses a protected loose-tube design with steel reinforcement and armor for outdoor network applications. The manufacturer's general G.652D specification gives maximum attenuation of ≤0.35 dB/km at 1310nm and ≤0.21 dB/km at 1550nm.

Key Features

• Cable Style: Round Cable — كيبل ضوئي قطري
• Fiber Count: 24 Core
• Fiber Type: Single Mode
• Fiber Standard: G.652D
• Cable Type: GYXTW-24B1
• Model / P.N.: HZL-T5879-24C
• Construction: Armored Outdoor Cable
• Length: 1KM / Drum
• Cable Outer Diameter: 8.0 mm
• Net Weight: 69 KG
• Gross Weight: 70 KG
• Outdoor Duct Cable
• Low Optical Attenuation
• Armored Construction
• Steel Reinforcement
• Suitable for ISP and Telecom Networks
• Suitable for Fiber Backbone Infrastructure
• Black Outdoor Outer Jacket

Technical Specification

SpecificationDetailsBrand | HZL / HezrraLink
Product Category | Round Fiber Optic Cable – كيبل ضوئي قطري
Model / P.N. | HZL-T5879-24C
Cable Type | GYXTW-24B1
Construction | Armored
Fiber Count | 24 Core
Fiber Type | Single Mode
Fiber Standard | G.652D
Length | 1000 meters / 1KM
Outer Diameter (OD) | 8.0 mm
Application | Outdoor Duct Cable
Net Weight | 69 KG
Gross Weight | 70 KG
Reel Number | 00024
Production / Test Date | 2025/12/22
Mode Field Diameter @ 1310nm | 9.2 ± 0.4 μm
Cladding Diameter | 125.0 ± 1 μm
Coating Diameter | 245 ± 10 μm
Maximum Attenuation @ 1310nm | ≤ 0.35 dB/km
Maximum Attenuation @ 1550nm | ≤ 0.21 dB/km
Cable Cut-Off Wavelength | ≤ 1260 nm
Proof Stress Level | ≥ 100 kpsi
Loose Tube Material | PBT
Reinforcement Material | Phosphating Steel Wire
Armor Material | Plastic-Coated Steel Strip
Outer Jacket Material | MDPE
Outer Jacket Color | Black
Minimum Bending Radius – Static | 10 × Cable Diameter
Minimum Bending Radius – Dynamic | 20 × Cable Diameter
Short-Term Tensile Strength | 1500 N
Short-Term Crush Resistance | 1000 N / 100 mm
Operating Temperature | -20°C to +60°C

Factory Attenuation Test

I strongly recommend adding this section to the 24-core SadaBox page because you have the actual factory test results for every fiber on this reel.

CoreFiber Color1310nm1550nm1 | Blue | 0.350 | 0.190
2 | Orange | 0.348 | 0.193
3 | Green | 0.321 | 0.199
4 | Brown | 0.332 | 0.182
5 | Grey | 0.322 | 0.182
6 | White | 0.332 | 0.197
7 | Red | 0.331 | 0.200
8 | Black | 0.340 | 0.186
9 | Yellow | 0.339 | 0.199
10 | Purple | 0.322 | 0.196
11 | Pink | 0.324 | 0.180
12 | Turquoise | 0.337 | 0.185
13 | Blue | 0.340 | 0.192
14 | Orange | 0.322 | 0.199
15 | Green | 0.325 | 0.182
16 | Brown | 0.320 | 0.184
17 | Grey | 0.326 | 0.188
18 | White | 0.323 | 0.187
19 | Red | 0.324 | 0.192
20 | Black | 0.327 | 0.181
21 | Yellow | 0.332 | 0.198
22 | Purple | 0.321 | 0.183
23 | Pink | 0.326 | 0.188
24 | Turquoise | 0.336 | 0.185
